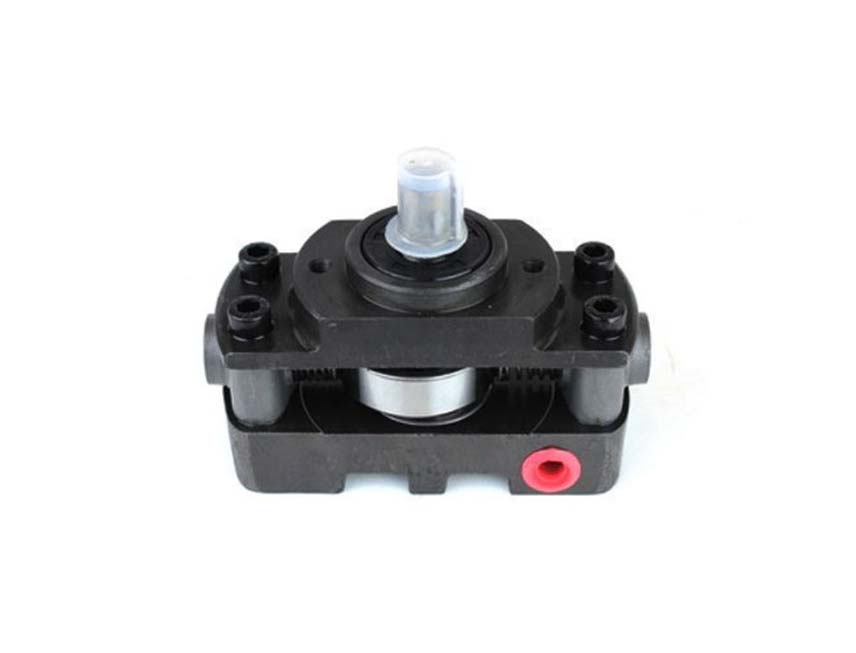

1R2 Radial Piston Pump Dealer in Chennai. Siphons model 1R2** are little , low weight , tough oil inundated type Radial Piston Pumps. These siphons are valve controlled and there is no limitation on course of turn of the siphon.
Download PDF
1R2 Radial Piston Pump Dealer in Chennai. These are accessible with 7 removals and 7 tension evaluations. These siphons give fixed yield per transformation of the shaft.
Technical specifications :
Designation : 1R is a basic radial piston pump group.
Design : Radial piston, valve controlled.
No. of elements : 2.
Mounting : Face mounting.
Interface : Factory standard.
Direction of rotation : No restriction on directions of rotation
Connection : Suction port – Sucks oil directly from tank no suction port is provided. Must be always immersed in oil.
Delivery (port P) – G1/4 female.
Speed range : 300 to 2000 r/min.
Flow and Pressure : Refer Table no.1
Hydraulic medium : Mineral oil.
Temperature range : -20°C to + 80°C.
Viscosity range : 0 cSt to 380 cSt.
Fluid cleanliness required : ISO 4406 20/18/15 or better
Mass : 4.39 Kg.
