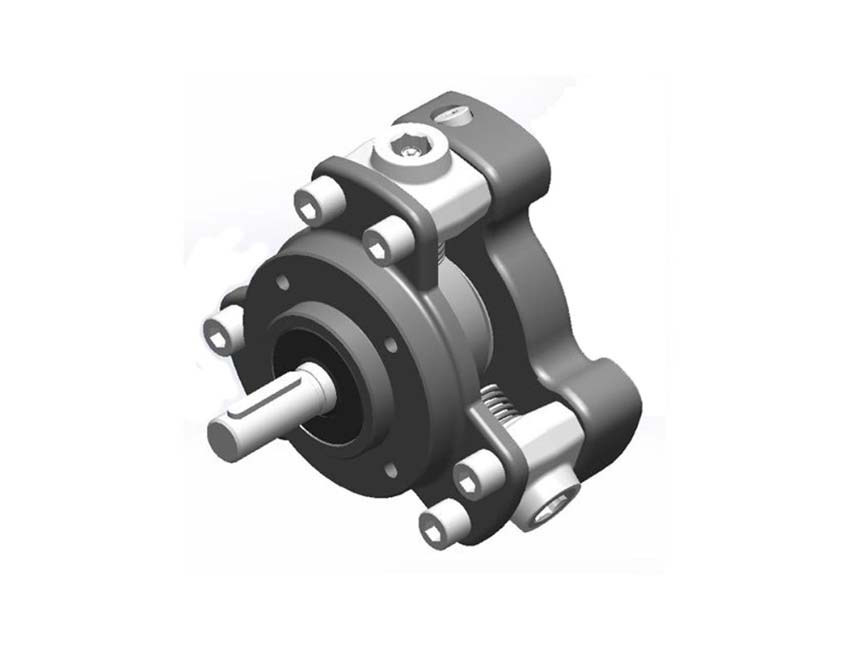

1R3 Radial Piston Pump Dealer in Chennai. Siphons model 1R3** are little , low weight , tough oil inundated type Radial Piston Pumps. These siphons are valve controlled and there is no limitation on bearing of pivot of the siphon.
Download PDF
1R3 Radial Piston Pump Dealer in Chennai. These are accessible with 7 relocations and 7 tension appraisals. These siphons give fixed yield per upheaval of the shaft.
Technical specifications :
Designation : 1R is a basic radial piston pump group.
Design : Radial piston, valve controlled.
No. of elements : 3.
Mounting : Face mounting.
Interface : Factory standard.
Direction of rotation : No restriction on directions of rotation
Connection : Suction port- Sucks oil directly from tank no suction port is provided. Delivery (port P)- G1/4 female.
Speed range : 300 to 2000 r/min.
Flow and Pressure : Refer Table no.1
Hydraulic medium : Mineral oil.
Temperature range : -20°C to + 80°C.
Viscosity range : 10 cSt to 100 cSt.
Fluid cleanliness required : ISO 4406 20/18/15 or better.
Mass : 5.29 Kg.
