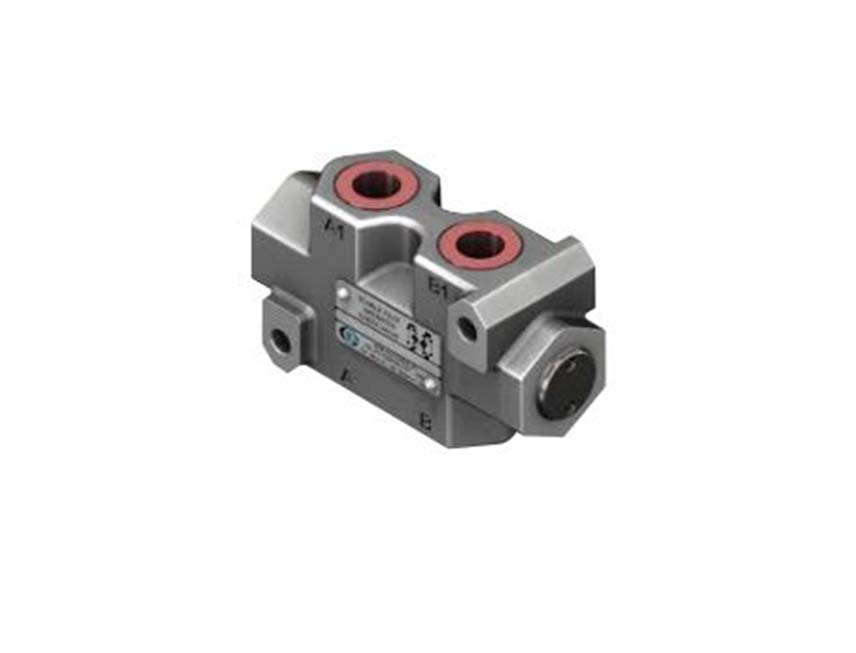

2CI10T Double pilot operated check valve Dealer in Chennai. Twofold pilot worked check valves series 2CI10T give pressure holding office on help ports A1 and B1.
Download PDF
2CI10T Double pilot operated check valve Dealer in Chennai. The valve opens and permits free return stream, when the other it is compressed to work port. The valve isn’t reasonable for holding tension on pole end side of Double acting chambers , where proportion ( Bore region : Annullus region ) is equivalent to or more noteworthy than 3.5.
Technical specifications :
Construction : Threaded, Seat type, Internally pilot operated.
Mounting style : Factory standard.
Mounting position : Optional.
Flow direction : Free flow from A to A1 and / or from B to B1.:Piloted flow in opposite direction.
Cracking pressure : 1, 3 or 5 bar.
Working pressure : 315 bar for all Ports.
Area ratios : Pilot piston : Decomp. poppet = 3.5 : 1
Hydraulic medium : Mineral oil.
Temperature range : -20°C to + 80°C.
Viscosity range : 10 cSt to 380 cSt.
Fluid cleanliness required : ISO 4406 20/18/15 or better.
Max. flow handling capacity : 80 l/min
