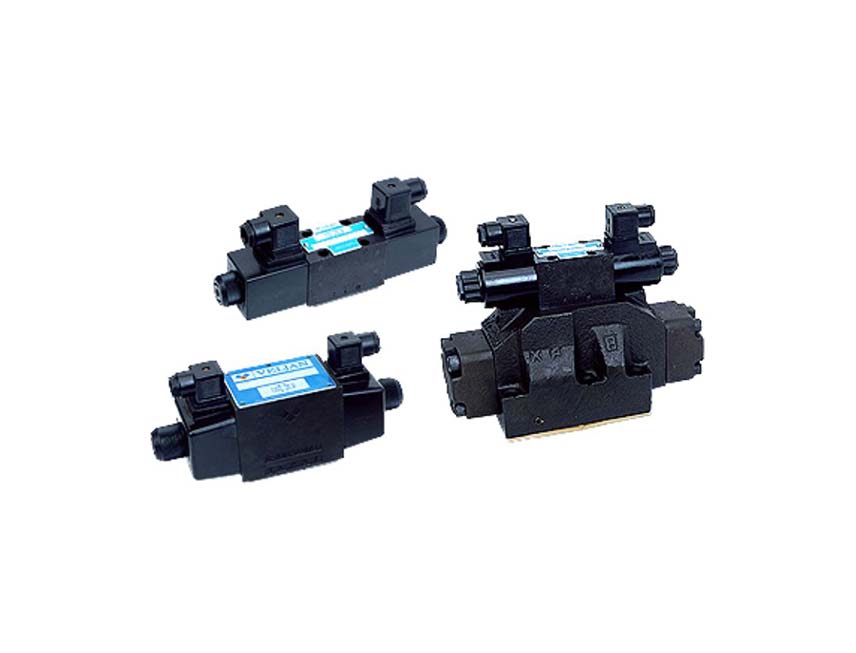

4D02 Directional Control Valve Dealer in Chennai. The Directional Control valve 4D02 comprises of a body, spool and it is possible that a couple of actuators relying on the application. The spool is moved by the activity of electrical solenoid, mechanical, water driven, pneumatic, cam or switch actuator system. Spool development permits oil under tension from port P to stream to either port An or B, and in this manner associate the other port to tank.
Download PDF
4D02 Directional Control Valve Dealer in Chennai. On de-energizing the actuator, the spool is returned to the center position or offset position. Manual operation of spool is possible using the optional manual override system.
Features :
* Extremely low pressure drop at high flow rates due to optimised flow paths in body & spool design.
* Compact five annuli body design.
* Wide variety of spool types including detent.
* Interchangeability of spools & bodies due to high precision manufacturing processes.
* Actuated by electrical / hydraulic / pneumatic / cam or lever mechanism.
* Wide range of A.C. and D.C. coil voltages are available both with or without manual override.
* Low electrical power consumption (48 W )
* Change of solenoid coil is fast and simple without risk of oil leakage.
* Solenoid coil can be positioned at 90° intervals with respect to body.
* Electrical connection by standard 3 pin connector according to DIN 43650, ISO 4400 or with wire box.
* Optional plug-in connector with LED display are available.
* Soft shifting version by use of an orifice is optional.
* Every valve is factory tested prior to despatch.
