The functional security and solidness of a pneumatic circuit relies upon the nature of the compacted air. The packed air and the dampness increment the repetition of wear of the surfaces and seals, lessening the productivity and the existence of pneumatic parts. Moreover the tension change because of an intermittent interest of air, unfavorably impact the right activity of the circuit. To kill these disservices introducing the help units: channel, pressure controller and lubricator is fundamental.
Download PDF
Construction and working characteristics :

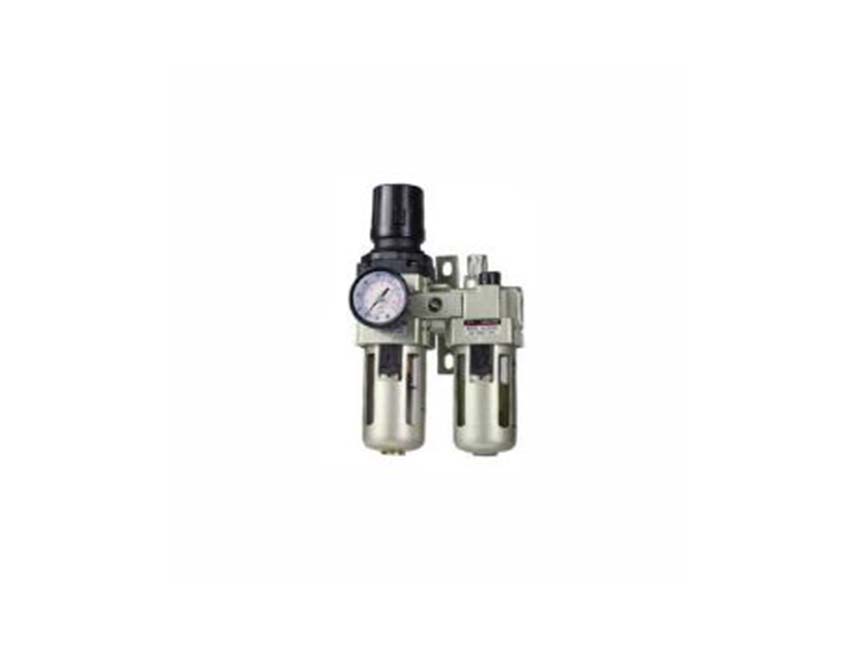

The great advantage of these Air Control Unit’s components is their modular design which allows their assembly without the use of additional devices.
This version is made of aluminum die-cast material.
The bowls ore made of transparent technopolymer, always allowing the clear view of moisture and oil level control from any angle.
The filter is equipped with manual drain valve for 2000 Series, Semi-Automatic drain valve for other series;
furthermore it’s possible to install automatic draining device inside the bowl.
The pressure regulator handle ¡s lockable in the desired position by simply pressing it downwards.
The lubricator oil flow is adjustable with proper handle and ¡fis visibly checked through the sight dome.
The accessories like the wall fixing brackets, pressure gauges are completing the range.
Instruction for installation and operation :
Pay attention to install a group or a single component with air flow direction according to the arrows and to the following sequence: filter, pressure regulator, lubricator and with bowls downwards. The group can be fixed to the wall by removing the covers, which con be installed again after fixing for the covering the screws.
Do not exceed the recommended torque while assembling the connectors.
Do not exceed the recommended air pressure and temperature limits.
The moisture should not exceed the level marked on the bowl.
The pressure should be set from minimum to maximum, rotating the adjusting handle clockwise.
As lubircant, we suggest to use oil class ISO VG32 or equivalent. Verily that the lubricator is not fed with a flow lower than the minimum operational.
To set the oil flow rotate the proper adjusting handle ¡n order to get one drop of oil every 300-600 litres of air.
The oil flow will be kept automatically and proportionally to the airflow.
The oil con be refilled by mean of proper plug or directly into the bowl after having de-pressurized the system. Do not exceed the maximum level indicated on the bowl.
