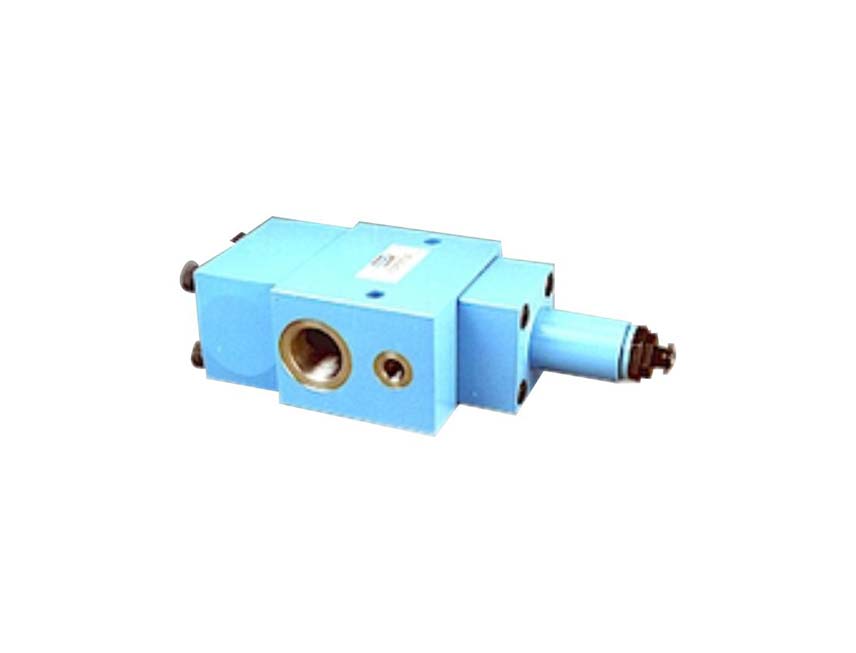

CB30 Counter Balance Valve Dealer in Chennai. Offset valves are seat type valves. They offer free-stream from their port B to An and provide release free sense of finality in inverse bearing upto a foreordained tension.
Download PDF
CB30 Counter Balance Valve Dealer in Chennai. This foreordained breaking tension can be changed inside its most extreme indicated range. For higher breaking tension or outer spillage channel, Port X can be utilized.
Technical Specifications :
Construction …………………………………………… Direct acting, seat type.
Mounting type …………………………………………. Threaded port body and Subplate body
Mounting position …………………………………….. Optional
Direction of flow ……………………………………….Free flow port B to A.Counter balance A to B.
Operating pressure …………………………………. 315 bar.
Cracking pressure …………………………………… Refer ordering code.
Hydraulic medium ……………………………………. Mineral oil.
Viscosity range ……………………………………….. 10 cSt to 380 cSt.
Fluid temperature range …………………………… -20 °C to +70 °C
Fluid cleanliness requirement ……………………. As per ISO 16/13 or better.
Flow handling capacity ………………………………200 lpm max.
Mass ……………………………………………………… Threaded body —- 12 kg. APPROXSubplate body —- 12 kg. APPROX
