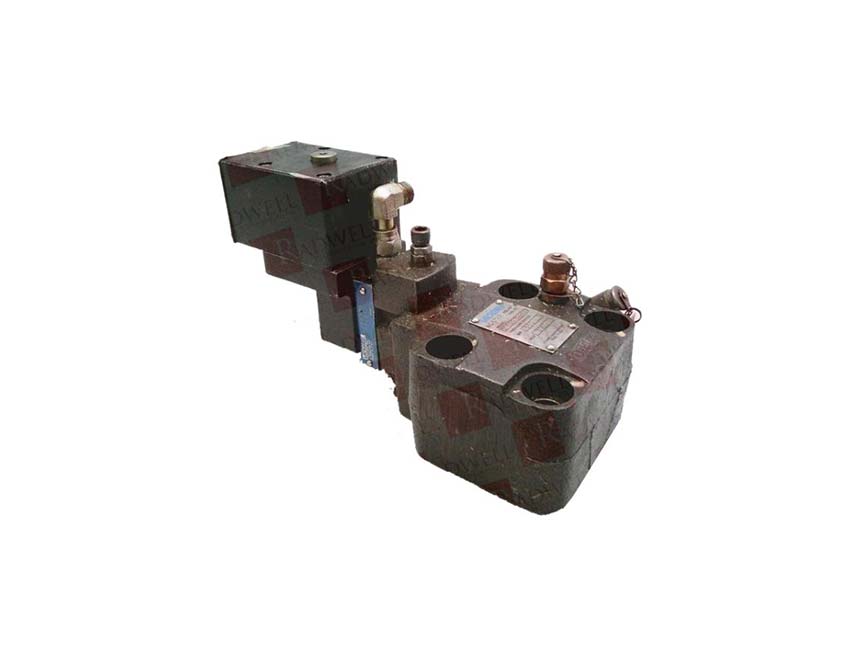

CGE10 Remote electrically modulated relief valve Dealer in Chennai. Gathering of a common distant electrically regulated alleviation valve is displayed in Figure 1. As a rule, the valve comprises of three essential parts, a fundamental stage, a moderate body and the electrically balanced pilot. The primary stage is like the stand alleviation valve. The middle body contains standard alleviation valve pilot parts to give manual change and has a mounting cushion which acknowledges CETOP 3 parts. The electrically tweaked pilot is machined to fit the CETOP 3pad and contains a flapper valve gathering, a hindering valve, and a ball type actually look at valve.
Download PDF
CGE10 Remote electrically modulated relief valve Dealer in Chennai. The new valve series gives an independent unit that regulates framework pressure electrically over a wide reach without outside input gadgets.
The valve can handle framework tension from any distance or area. Regulating signs might be gotten from potentiometers, simple PCs, power supplies or whatever other source that will give the vital drive current to the pilot stage. A current of 0-500 milliamperes (mA) is expected to adjust the valve.
Power supply EMCS-*-30 was explicitly intended for control of this sort valve. The EMCS isn’t restricted to potentiometer order just yet can undoubtedly be adjusted to controller gadgets. For data on EMCS, allude to establishment drawing 521557, from Technical Publications, Troy, MI 48084.
