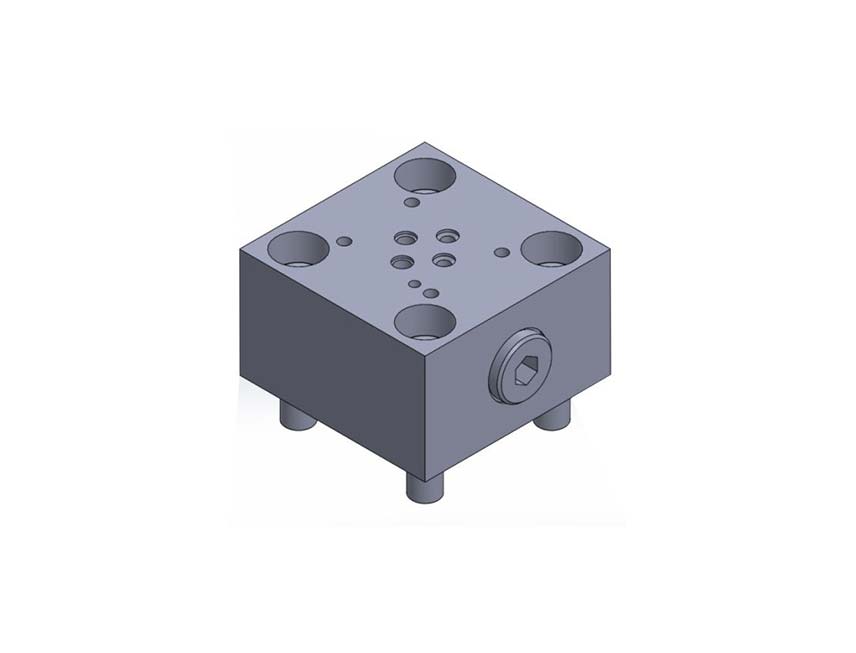

CVC-SDEA 2 port slip-in cartridge valve dealer in chennai. The Covers CVC*SDEAA and CVC*SDEAB are intended to hold Polyhydron make 2 port slip-in cartridge valves model CV*** in the pits machined according to ISO 7368, with worked in office to control the activity of the cartridge valve.
Download PDF
CVC-SDEA 2 port slip-in cartridge valve dealer in chennai. Refering to the circuits displayed underneath, the underlying Shuttle valve in the cover chooses higher of the pilot pressures brought to the cover at its ports X and from one or the other A (if there should be an occurrence of cover model CVC*SDEAA) or B (in the event of cover model CVC*SDEAB) to the control port C of the cartridge valve.
Accordingly, these setups are exceptionally helpful in cartridge circuits when one wishes to involve a Cartridge valve as a solenoid controlled spillage free entryway ( spillage free toward the cartridge from port B to port A) . This can be accomplished by interfacing control port X to port B of the cartridge in complex.
Whenever done so , by utilizing the cover model CVC*SDEAA , with solenoid in de-empowered condition, one can accomplish a component of free stream with check from its port A to port B . By invigorating the solenoid , the section in the cartridge (from port A to B or B to A) can be obstructed.
By utilizing the cover model CVC*SDEAB, with solenoid de-empowers condition, one can impede the section in the cartridge (from port A to B or B to A). By empowering the solenoid , free stream with check from its port A to port B can be accomplished.
