We are occupied with offering a complete scope of Aira Double Eccentric Off-Set Double Flange to the clients. Our clients can profit these items in various details from us.
Download PDF

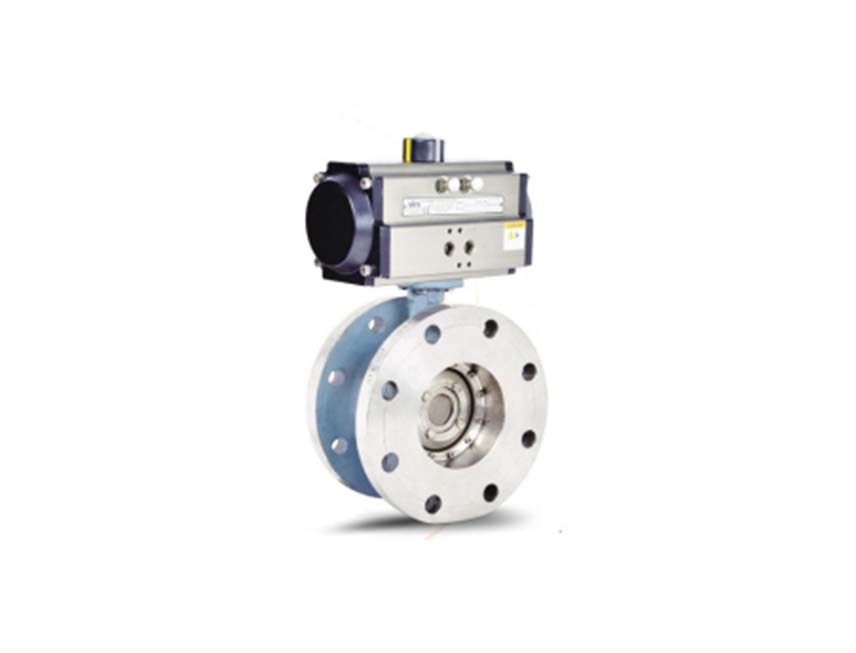

BOD Pneumatic Actuator Double Eccentric Off – Set Double Flange Butterfly Valve 300 & 600 Supplier in Chennai
Specifications :
Model : BOD
Design : Double Eccentric Design Off Set Disc Double Flange Fire Safe Design Butterfly Valve
Body : ASTM A 2016 Gr. WCB / A 351 Gr. CF8 / CF8M
Size Range : 2″ To 24″
Shaft : ASTM A 479 Type 410 / 304 / 316
Disc. : ASTM A 2016 Gr. WCB / A 351 Gr. CF8 / CF8M
Seat : NBR/VITON/RPTFE
Temperature : up to 220° C
Pressure rating : PN 25 / PN 40
End Connection : ASME / ANSI B 16.5 Class 300,Class 600
