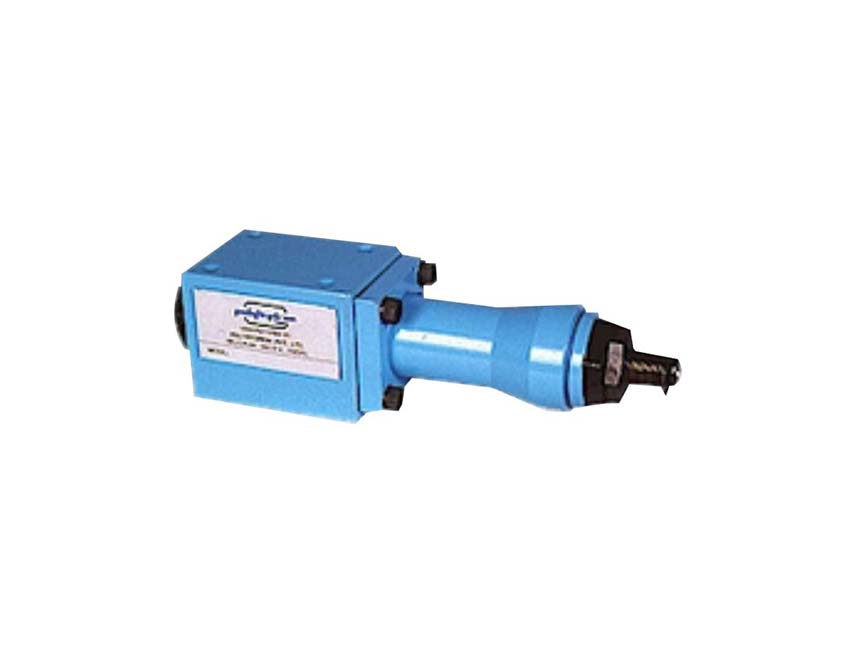

DPM Pressure Reducing Valve Dealer in Chennai. Direct acting, spooltype pressure diminishing valve with control of tension from either optional circuit (Model DPM*06SA) or from a remote source (Model DPM*06SB).
Download PDF
DPM Pressure Reducing Valve Dealer in Chennai. Four pressure rating 25, 50, 100 and 200 bar with primary pressure rating to 315 bar. Pressure setting by screw of hand knob adjustment.
Technical specifications :
Construction : Direct acting spool type.
Mounting style : Sub-plate mounting.
Mounting interface : Sub-plate mounting – As per ISO 6403.
Flow direction : Free flow from Port P to Port A.
Working pressure : For Port P……………………315 bar.For Port A and Port B……200 bar.For Port T…………………….60 bar (max).
Hydraulic medium : Mineral oil.
Temperature range : -20°C to + 80°C.
Viscosity range : 10 cSt to 380 cSt.
Fluid cleanliness required : ISO 4406 20/18/15 or better.
Max. flow handling capacity : Refer graph
Mass approx. : 1.54 Kg.
