We are occupied with offering a complete scope of Avcon Actuator EA-50 Series to the clients. Our clients can profit these items in various details from us.
Download PDF

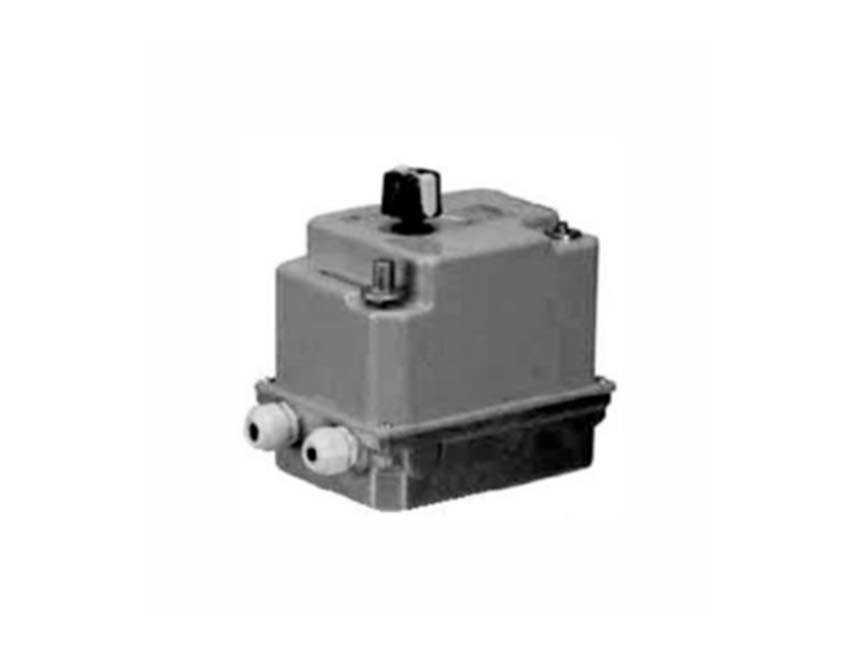

Electric Actuator EA-50 is essential intended to be in the field with Low Cost mechanization. The greatest force of actuator is 50 Nm. Electric Actuator lodging is bite the dust projected in Aluminum (LM-24) and intensity treated, invigorating limit for the ideal force rating. Configuration adjusting to IP-67, according to IS/IEC 60529-2001. Limit switches are consolidated to remove supply toward the finish of movement. Extra Two Auxiliary breaking point switches can be accommodated individual changes (discretionary).
CE supported, extremely durable magnet type Synchronous engine is utilized. Wires and Manual Override are integrated as a Safety highlights. A terminal square appropriate for associating outside wires is consolidated in the PCB.
The actuator is appropriate for working AVCON Full Bore Ball Valve upto and comprehensive of 1 ½” (38 MM) size, Rubber lined Butterfly Valves upto 4″ (100 MM) size, Plug Valves upto 2″ (50 MM) size and Low Leakage Type Butterfly Valves upto 6″ (150 MM) size. Actuator can be mounted toward any path.
