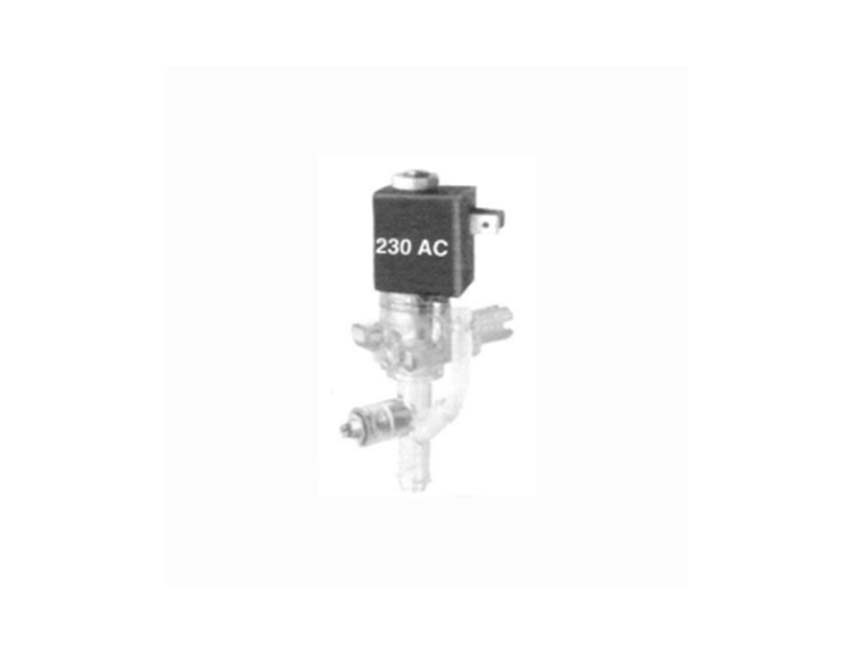

We are occupied with offering a complete scope of Flocon FDV-200 2Way Solenoid Valve to the clients. Our clients can profit these items in various details from us.
Download PDF
2 way direct acting specialised food grade dry armoture dispense solenoid valve is widely accepted by the vending industry in India. Volves are supplied with flow control & vent.
TECHNICAL SPECIFICATION :
1) Construction – Dry Armature for Hygiene and Reliability
2) Operating Pressure – o to 0.5 kg/cm2
3) Operating Temperature – 0° to 95°C
4) Material – All food grade material in contact with media.
5) Seat – Valve seat operates with wiping action to avoid limescale.
6) Port Size – 8mm
7) Medium – Hot Water
8) Coil Voltage – 23OVAC/24VDC± 10%
9) Body material – Acetal / Polycarbonate
10) Armature tube Assembly – Brass
11) Coil – Epoxy moulded IP -65, ‘F’ Class for (155°C)
Coil watts – 8, Current – 60 mA
