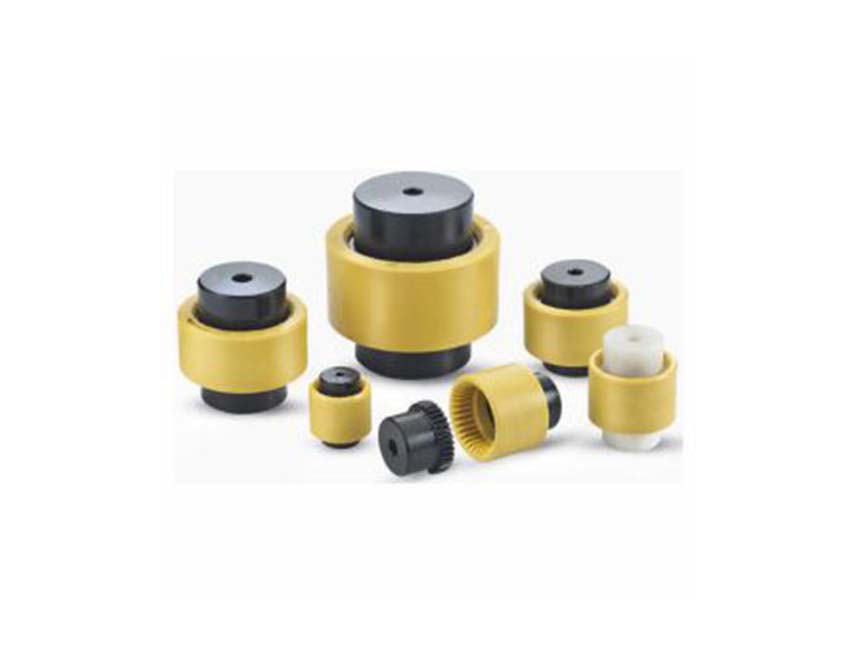

The Hydax Flexible Drive Coupling comprises of two steel gear centers participating in a sleeve of high grade plastic material. This material has unrivaled strength and a wide working temperature range.
Download PDF
The ears have delegated tooth structure which grants pivotal and rakish misalignment. The couplings have gone through broad testing under serious burden conditions. They are not difficult to collect and require no support or oil and don’t produce transmission commotion.
Get together PROCEDURE :
Greatest reasonable rakish misalignment is 1.5 degrees. Guarantee that the coupling centers handily fit on the shaft. Try not to utilize unnecessary power. Keep up with hole between center points as displayed in sketch. Use grub screws to find gear center points on their separate shafts.
