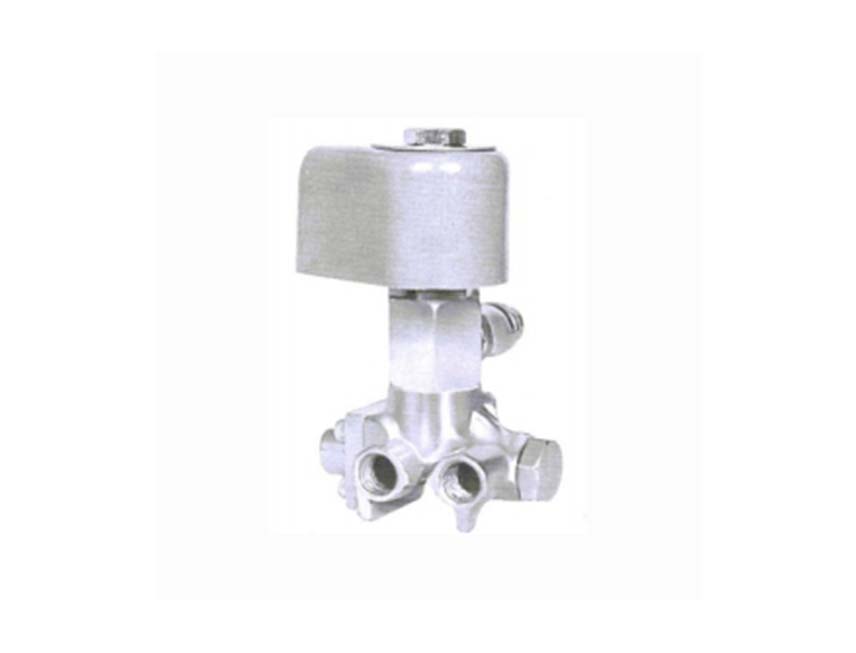

We are occupied with offering a complete scope of Flocon FP-402 4Way Solenoid Valve to the clients. Our clients can profit these items in various details from us.
Download PDF
Midget valves are packless. solenoid pilot operated 4-way valves with forged brass bodies. These valves are extremely compact and are Primarily used to control double acting cylinders, not larger than 4” in diameter.
SPECIFICATIONS:
OPERATION :
When solenoid is energised pressure is applied to ‘Cylinder B’ and ‘Cylinder A’ is open to exhaust When solenoid ¡s de-energised pressure is applied to ‘Cylinder A’ and ‘Cylinder B’ is open to exhaust.
VALVE:
1) Forged brass body.
2) Resilient seating.
3) Pipe connections suitable for 1/4” BSP/NPT.
4) Operating pressures from 0.8 kg/cm2 to 10 kg/cm2 for
AC Voltages
5) Inlet orifice 1/16”, Cv-FIow factor 0.036.
6) Exhaust orifice 3/32”, Cv-FIow factor 0.092.
7) Maximum A-C fluid temperature 95°C
