We are occupied with offering a complete scope of Janatics FRLM with Internal Autodrain to the clients. Our clients can profit these items in various details from us.
Download PDF

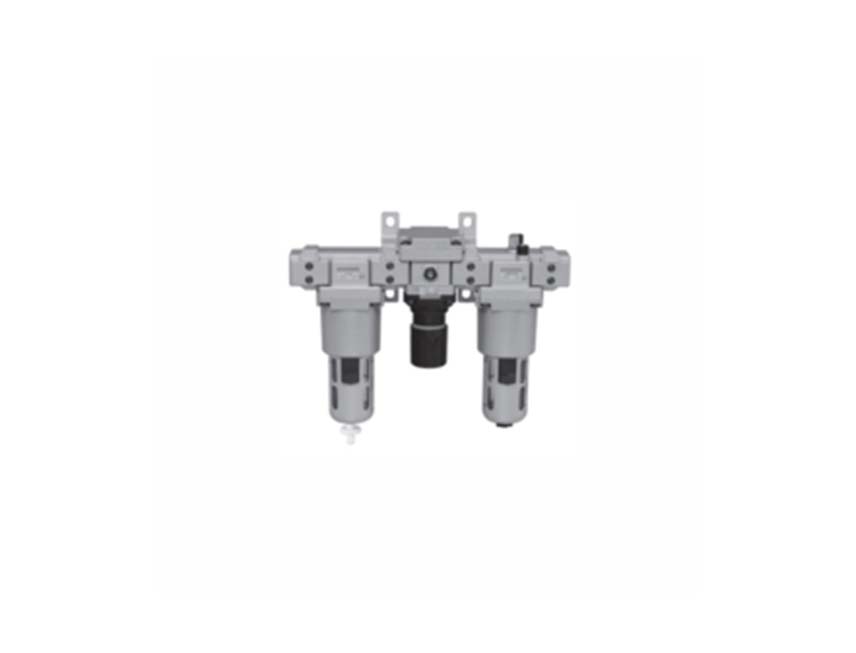

FRL MODULAR WITH INTERNAL AUTODRAIN
Individual Filter – Regulator combination & Lubricator units easily removable / mountable without disturbing the pipe line
Features :
* Modular type for easy and fast maintenance
* Suitable for wall mounting
* Filter- Bronze filtering element
– Separator and shield for efficient moisture separation
* Internal Autodrain -Float type, no electrical connections required.
– Manual drain is also provided / possible.
– Provision for drain tube connection, to take the condensate away from the unit, to keep the working area clean.
* Regulator – Diaphragm operated, relieving type
– Pressure compensated by balanced poppet
– Flow compensated (with venturi) for faster response.
– Non raising ‘Press to lock’ adjusting knob for lockingat any set pressure
* Lubricator- Fog / Mist type Lubricator
– Fine adjustment of lubrication
– Lubrication proportional to flow
* Steel bowl guard, bayonet type on FRLM14, FRLM15 & FRLM17 models
* Good flow and regulating characteristics
