We are occupied with offering a far reaching scope of High Efficiency Coalescing Filters A 602 / 603 to clients. Our clients can profit these items in various determinations from us.
Download PDF
Application :

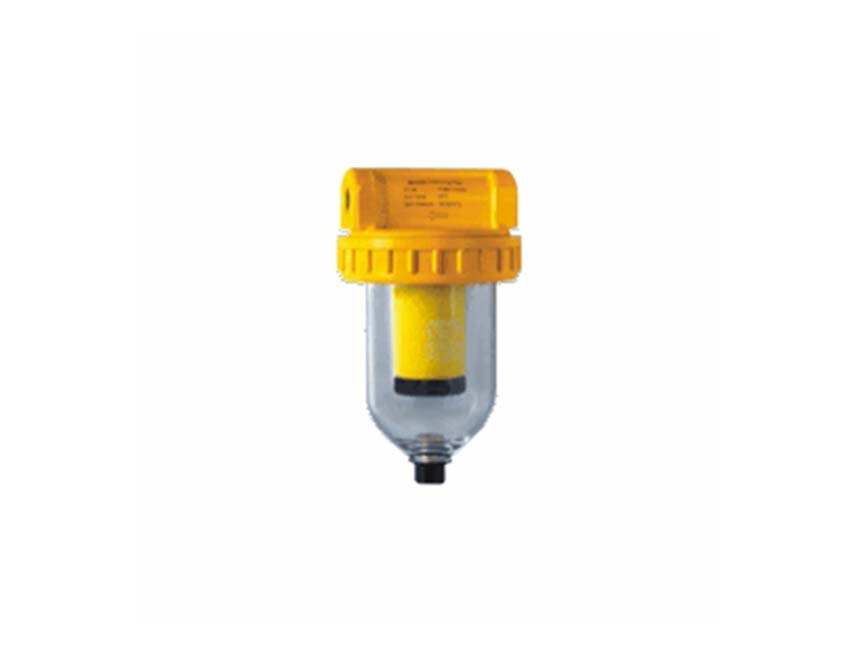

The A-602 high efficiency coalescing filters are available in pipe sizes from 6mm (G114) to 25mm (G 1). It is designed for applications where all solid particles of upto 1.0/0.01 micron
size or larger are to be removed from the air supply alongwith oil and water aerosols upto 0.5 / 0.01 mg/rn3. These filters are so efficient that as the air is directed through the wrapped
filtering media, solid contamination of 1.0 I 0.01 p size are trapped by Interception, Inertia Impact and Diffusion at low velocities, aerosols are coalesced to form liquid droplets which are permanently removed from the air stream and captured into the sump. The above filters are available from 19 CFM to 64 CFM. It is having rugged Diecast Zinc /Aluminium body with transparent bowl or optional metal bowl. Ideal for sensitive applications.
Features :
* Low Initial cost.
* Eazy to install.
* Ideal for end use applications / sensitive applications.
