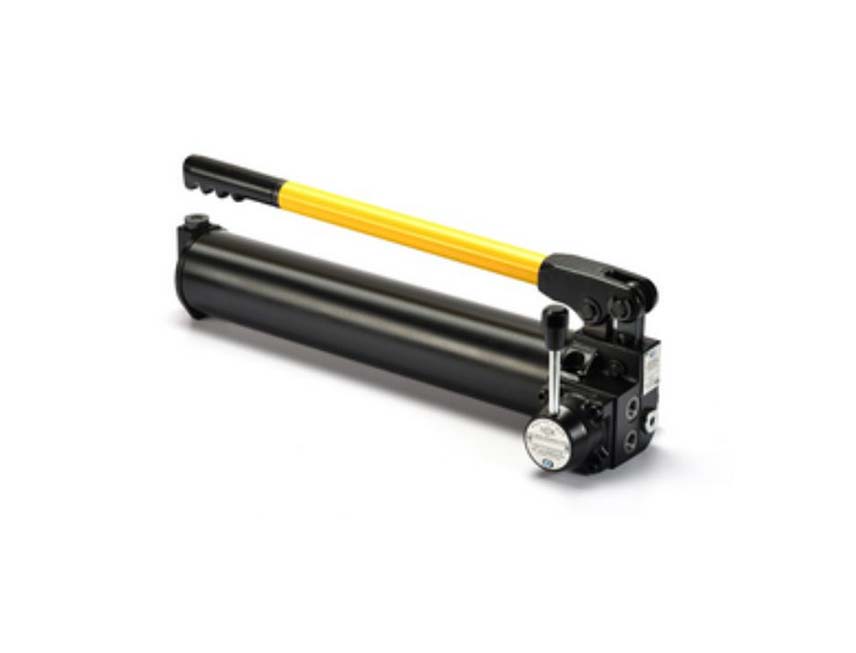

HP-D Hand Pump with DC Valve Dealer in Chennai. Hand siphon model HP*-D are minimal hard core siphons intended for modern applications like working little presses, installations as well as giving wellspring of oil to using pressurized water worked crisis supplies.
Download PDF
HP-D Hand Pump with DC Valve Dealer in Chennai. These hand siphons are furnished with basic Rotary Directional Control Valve with two outlet ports for exchanging of the stream between the different sides of a twofold acting chamber. The Rotary valve has pressure holding capacity. HP-D Hand Pump with DC Valve Supplier in Chennai.
Technical specifications :
Construction : Sealed piston with ball type suction and delivery valve.
Hydraulic medium : Mineral oil.
Maximum working pressure : Refer table no.1
Displacement : Refer table no.1
Oil tank capacity : 1.25 L
Oil tank displacement : 0.8 L
Force required at the end of the pump hand lever
at max. pressure (Approx) : Refer table no.1
Viscosity range : 10 cSt to 380 cSt
Fluid temperature range : -20°C to +70°C
Fluid cleanliness requirement : ISO 4406 20/18/15 or better.
Mass (Approx) : Without Oil – 9 kg.
