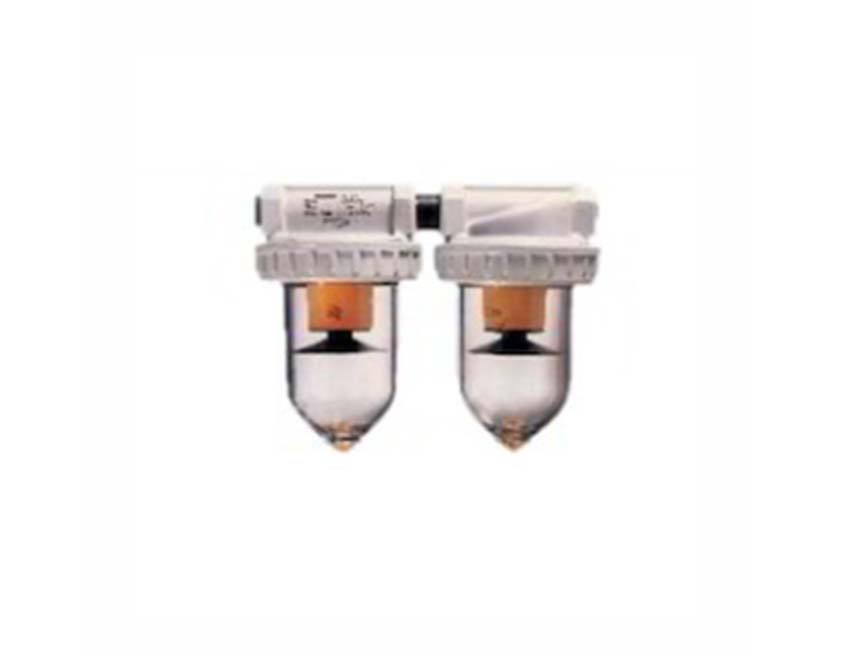

We are occupied with offering a far reaching scope of Oil Removal Filters Standard A 604 to clients. Our clients can profit these items in various determinations from us.
Download PDF
Application :
An extremely efficient filter designed for applications where the delivered air must be free of oil and all fine foreign particles. The final filter element is capable of entrapping particles down to a size of one microns. Effective filtration coupled with low pressure drop make this filter ideally suited for air flows upto 450 scfm at 7 Kg/cm2 g.
Filters is designed for instrumentation fluidic systems where particularly oil free air is necessity.
Clear transparent polycarbonate bowl permits filter element inspection at a glance. Replacement filter element can be quickly installed without the use of tools.
Features :
• Low initial cost.
• One micron positive protection.
• Service without breaking pipe connection.
• Manual or automatic drain.
• Flow from 9cfm upto 400 cfm @ 7 Kg/cm2 5 psi drop @ 20°C
• Oil Retention upto 5 ppm.
