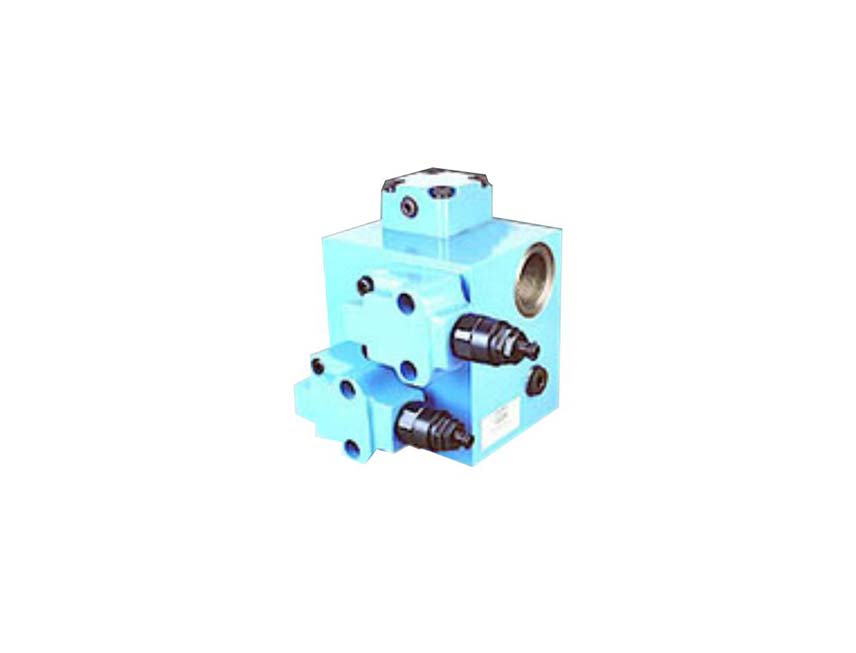

PCM 20-16 Pressure Control Module Dealer in Chennai. Intended to control twofold siphons of Hi-Low framework. Dumps low tension siphon when framework pressure transcends the strain set on Unloader valve.
Download PDF
PCM 20-16 Pressure Control Module Dealer in Chennai. Relieves high pressure pump when system pressure reaches the value. Solenoid unloading facility available as an option.
Technical specifications :
Construction PCM 20/16 ………………..Two stage poppet type high pressure relief valve.Two stage poppet type low pressure unloading valve.
Mounting ……………………………………Threaded body ( Factory standard )
Mounting position …………………………Optional
Flow direction ……………………………..As per hydraulic symbol.
Operating pressure ………………………For low pressure pump 50 and 100 bar.For high pressure pump port 100, 200, 315.
Hydraulic medium ………………………..Mineral oil.
Viscosity range ……………………………10 cSt to 380 cSt.
Fluid temperature range …………………-20°C to +70°C.
Fluid cleanliness requirement ………….ISO 4406 20/18/15 or better
Mass ………………………………………….. 10.5 kg. APPROX.
