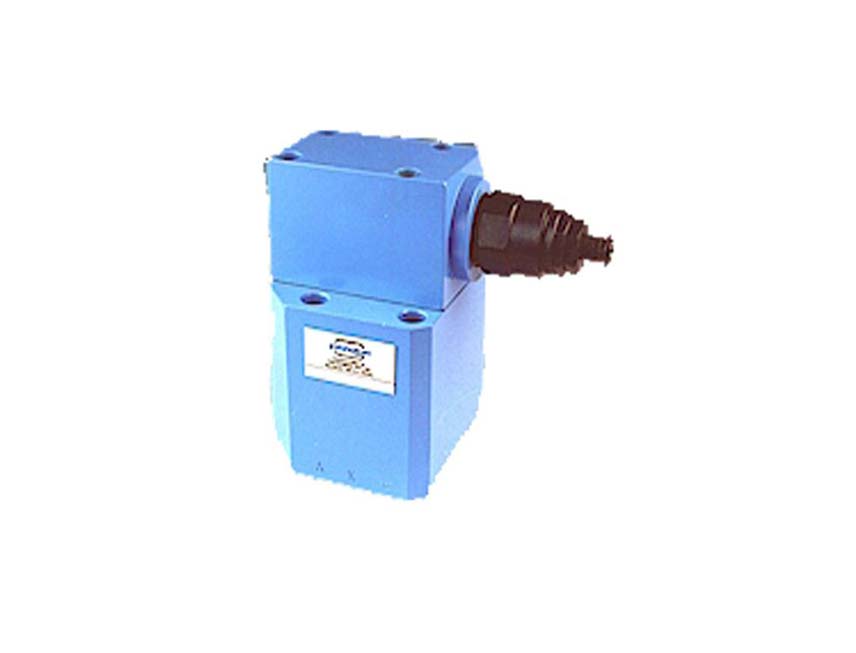

PPM Pilot Operated Reducing Valve Dealer in Chennai. Two phase pilot worked development. These valves are ordinarily open sort valves. At the point when the strain in the auxiliary port( port A ) increments to set pressure.
Download PDF
PPM Pilot Operated Reducing Valve Dealer in Chennai. the valve closes against the spring. For invert free stream, the valve can be provided with a measured actually look at valve. (To be requested independently)
Technical Specifications :
Construction …………………………………………….Two stage pilot operated valve.
Mounting type …………………………………………..Subplate mounting conforming to ISO 5781,Threaded conforming to factory standard.
Mounting position ……………………………………..Optional
Flow direction …………………………………………..From port ‘B’ to port ‘A’
Inlet pressure at port ‘B’ ……………………………315 bar
Outlet pressure at ‘A’ ………………………………..5 to 315 bar
Max. back pressure at port ‘Y’ …………………315 bar
Hydraulic medium …………………………………….Mineral oil
Viscosity range …………………………………………10 cSt to 380 cSt.
Fluid temperature range ……………………………-20 °C to +70 °C
Fluid cleanliness requirement …………………….As per ISO 16/13
Maximum flow handling capacity ………………..For valve size 102030……. 80 l/min…….. 200 l/min…….. 300 l/min.
