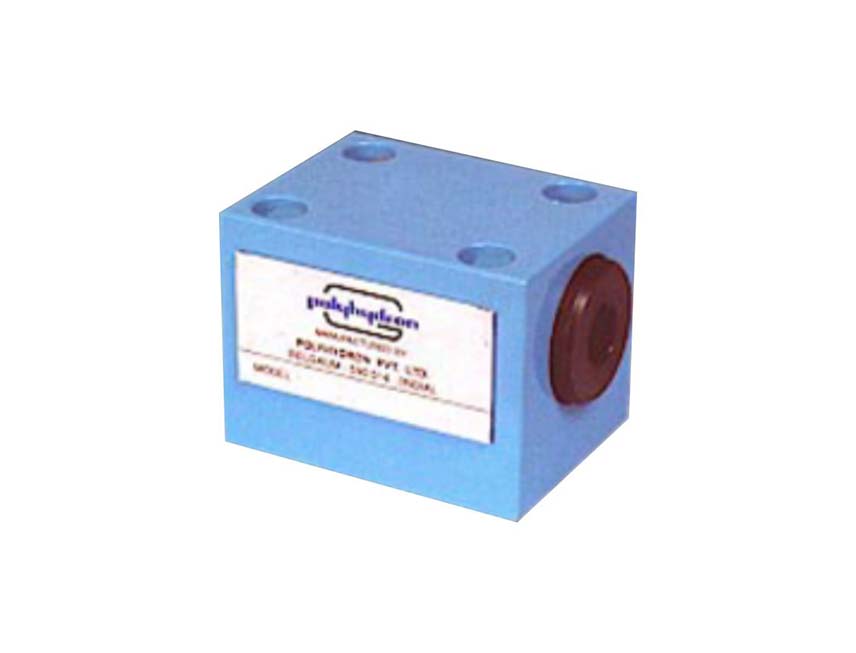

SL Shuttle Valve Dealer in Chennai. Seat type development. Naturally interfaces its P port to one or the other An or B relying on whichever of two ports is at higher tension level.
Download PDF
SL Shuttle Valve Dealer in Chennai. Secludes port An and port B from one another. Port P can be associated with tank provided that port An and port B are associated with tank.
Technical specification :
Construction ……… Seat type.
Mounting style …….. Cartridge, Threaded connection. (Factory standard) or Subplate type conforming to interface as perISO 4401 – AB – 03 – 4 – A, DIN 24340, ISI 10187.
Mounting position …….. Optional. (Valve axis horizontal preferred.)
Direction of flow ……… A to P if pressure ar A > B.B to P if pressure ar B > A.P to A and B if A and B are at equal pressure level.(This condition can be used to connect P to tank)
Operating pressure ……… 315 bar.
Hydraulic medium ………. Mineral oil.
Viscosity range ……… 10 cSt to 380 cSt.
Fluid temperature range ……….. -10 °C to +80 °C.
Fluid cleanliness requirement ……… As per ISO 16/13. or better.
Flow handling capacity ………… Refer graph.
Mass ……….. Threaded type …. 0.75 kg.Subplate type …. 0.83 kg.
