We are occupied with offering a complete scope of Aira Wafer Type Damper Valve to the clients. Our clients can profit these items in various details from us.
Download PDF

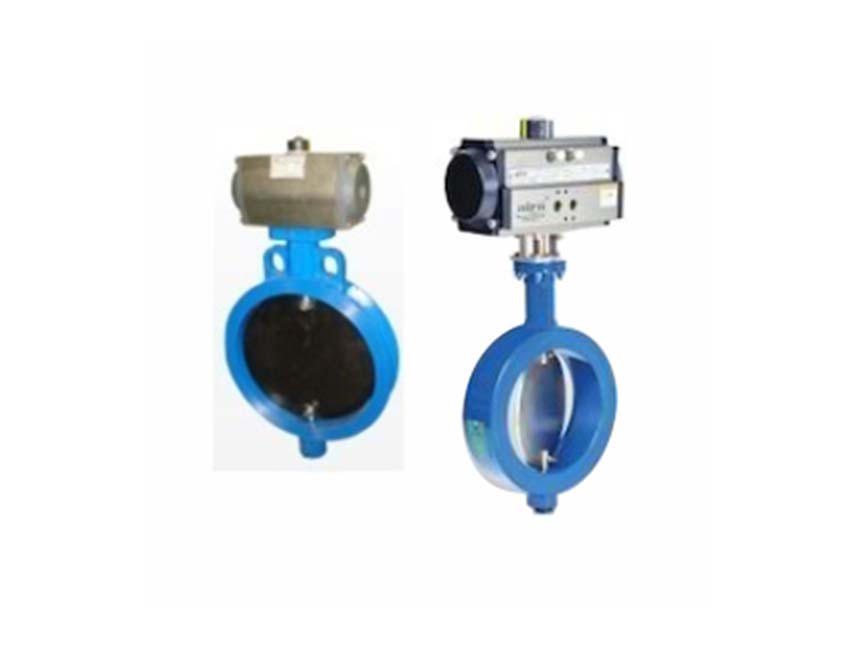

DP Pneumatic Rotary Actuator Wafer Type Damper Valve Supplier in Chennai
Specifications :
Model : DP
Design : Short Wafer Type Damper Valve with Metal to Metal Seat
Body : Gry Iron / Cast Steel / Ductile Iron / CF8 / CF8M
Size Range : 1.1/2″ to 20″
Shaft : AISI 410 / AISI 304 / AISI 316 / AISI 316L
Disc. : WCB / CF8 / CF8M
Seat : Metal to Metal
Seat Leakage : 5% Leakage of full flow
Temperature : -25°C to 400°C (Up to 600° C Depending MOC)
Pressure : PN 6 ( Maximum)
End Connection : Wafer Sandwiched (Lug type on request)
